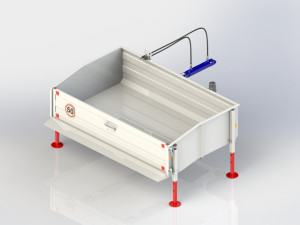

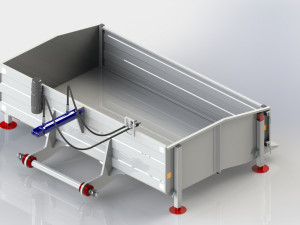

WG 0023 - Transport Box for tractor Низькополігон. 3D Модель

deal for transporting fruits, wood/debris, tools, manure, ect up to 700kg. Boxes can be used to scoop up material. The WG 0023 is attached to the tractor using universal 3 point linkage Cat. 1-2 and fits all 30-70hp tractors.

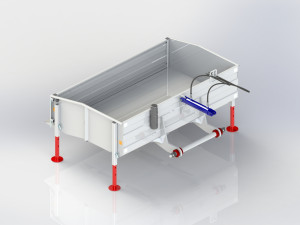

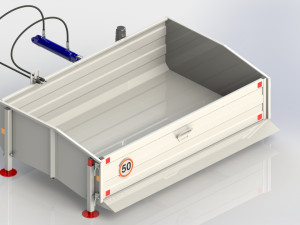

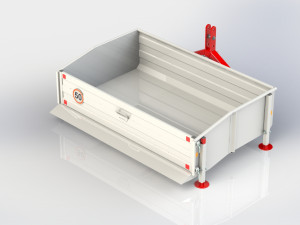

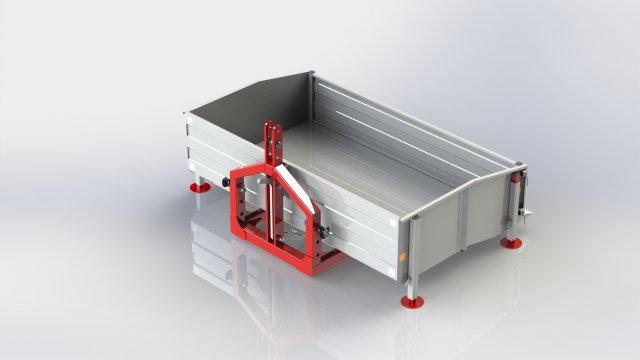

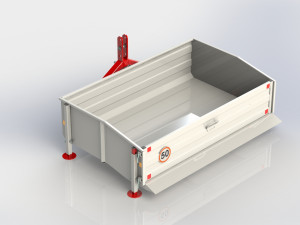

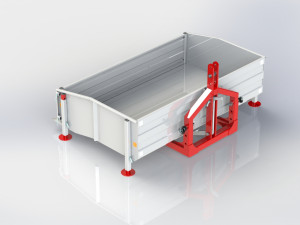

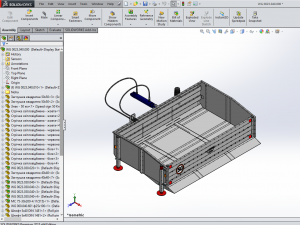

This is full solidworks model.
Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production!
This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015.
Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)
The model contains the most popular formats:

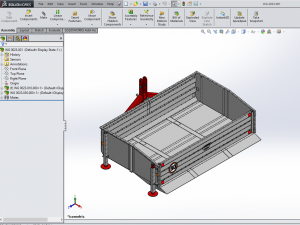

SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE)
IGES: *.iges *.igs
STEP: *.step *.stp
Stereolithography: *.stl

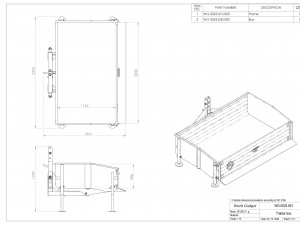

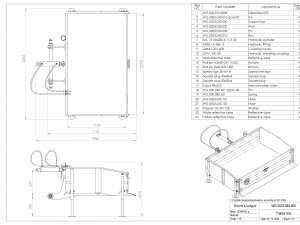

All CAD Drawings are saved in format *.PDF
Programs for plasma (laser) saved in the format: *.DXF
