horizontal vacuum drying furnace cemented carbide equipment 3D Модель

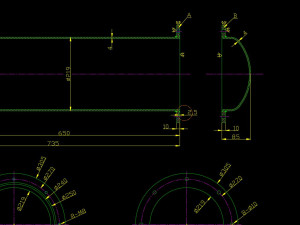

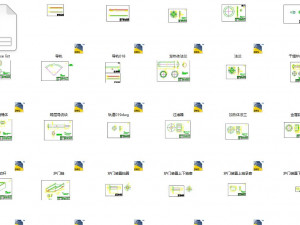

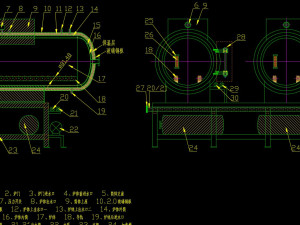

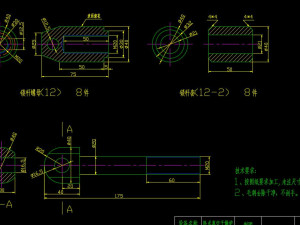

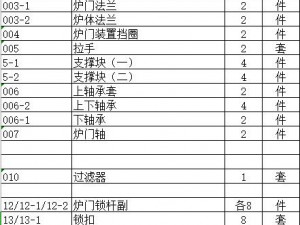

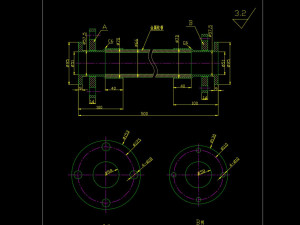

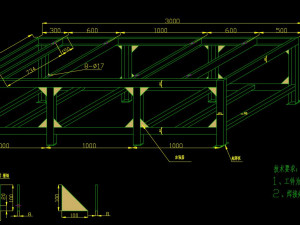

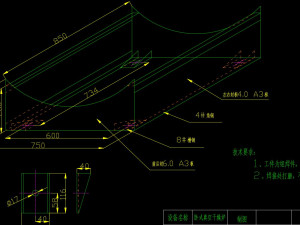

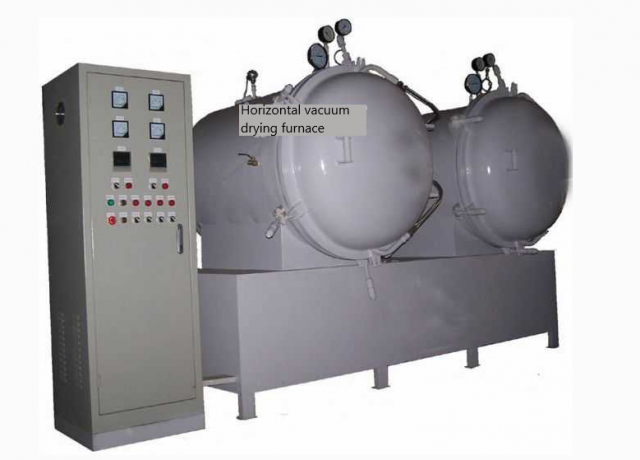

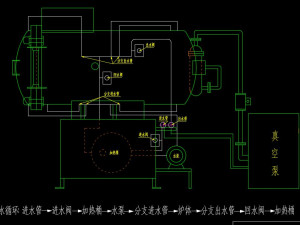

horizontal vacuum drying furnace drawings, complete drawings including all parts list, can be directly produced according to the drawings, welcome to download! horizontal vacuum drying furnace is mainly used in the early stage of vacuum drying equipment for alloy bars, plates, electrical components and other products. the equipment can adopt horizontal water circulation or heat transfer oil circulation heating system. 1、 main performance description: 1. adopting the latest international technology, scientific and reasonable structure, excellent performance, high safety factor, convenient cleaning, easy maintenance, mainly composed of furnace body, circulating heat conduction system, electrical control, etc. 2. the furnace body is made of high-quality thickened steel plate, and the exterior is made of new thermal insulation materials. the interlayer between the inside and outside and the furnace cover are water-cooled wall type. the welding and sealing parts have passed the strict pressure test to find the leakage, which has good sealing performance and stability. 3. the temperature control system can control different temperatures according to the needs of users. it can work independently or in series. the temperature control accuracy reaches 5 degrees. the heating output is controlled by scr and can be adjusted automatically. 4. the system is equipped with alarm prompt for over temperature, water cut-off, insufficient pressure and process completion, and the operation process, parameters and process progress status information are displayed on the control panel. Готовність до друку: Ні
