cooling tower 3D Модель

a cooling tower is a heat rejection device that rejects waste heat to the atmosphere through the cooling of a water stream to a lower temperature. cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature or, in the case of closed circuit dry cooling towers, rely solely on air to cool the working fluid to near the dry-bulb air temperature.

common applications include cooling the circulating water used in oil refineries, petrochemical and other chemical plants, thermal power stations, nuclear power stations and hvac systems for cooling buildings. the classification is based on the type of air induction into the tower: the main types of cooling towers are natural draft and induced draft cooling towers.

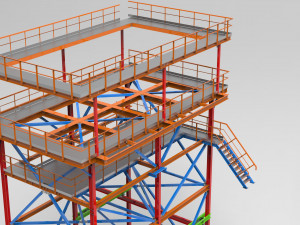

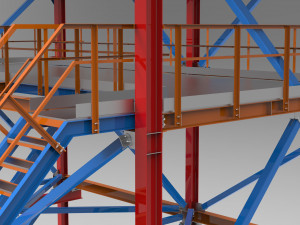

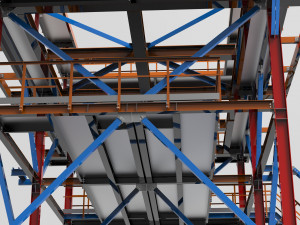

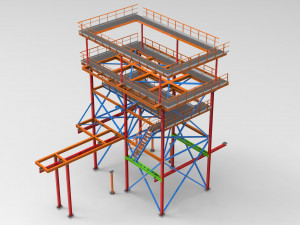

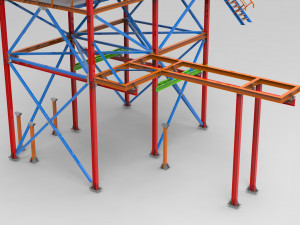

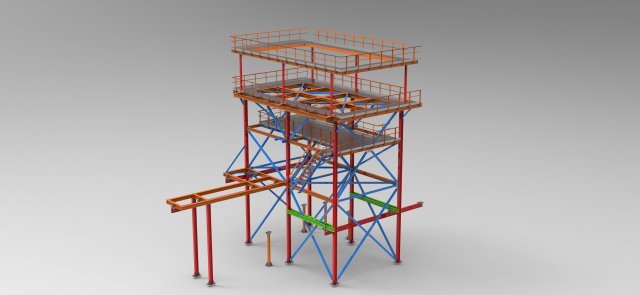

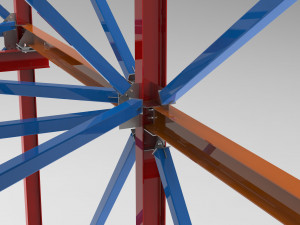

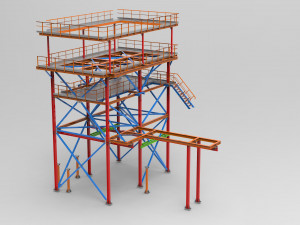

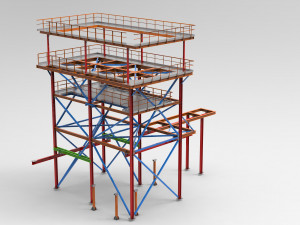

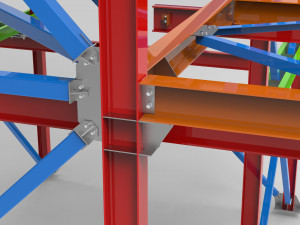

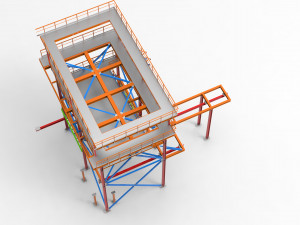

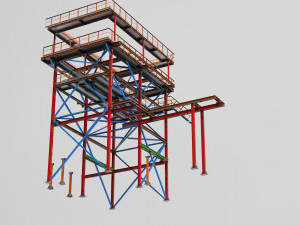

model with full detail in real size. all nodes and bolted connections are built. it was designed for nuclear power. Готовність до друку: Ні
