automatic box turnover equipment 3D Модель

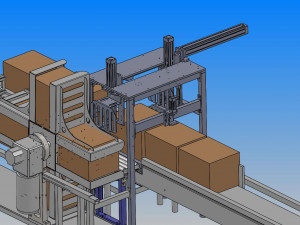

the 3d model sw design of the box automatic turnover equipment is to realize the automatic turning of the box body by 180 degrees. at the same time, the linkage control with the original production line is adopted. the newly added automatic turnover machine does not affect the beat of the original production line.

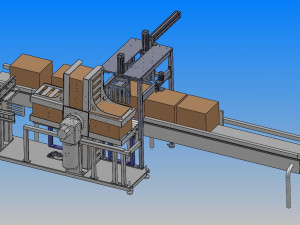

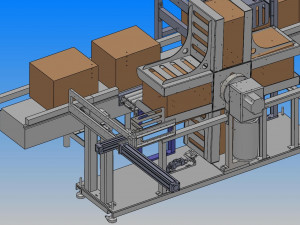

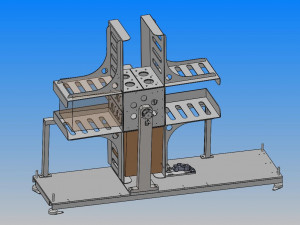

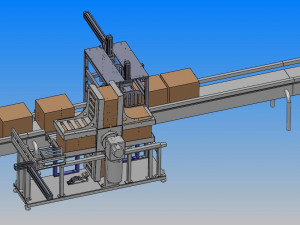

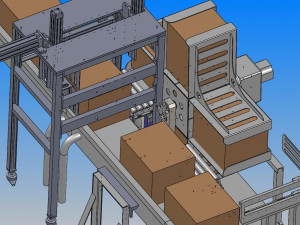

the box comes out from the conveyor belt and needs to be turned 90 degrees. the equipment pushes the box out from the conveyor belt into the turntable. the turntable rotates 90 degrees each time, and then the box is pushed onto the conveyor belt again. the box turnover machine includes general assembly drawing, component drawing and parts drawing. i hope it will be helpful for everyone to learn. Готовність до друку: Ні
