20 sets of vibrating plate direct vibration feeding mechanism 3D Модель

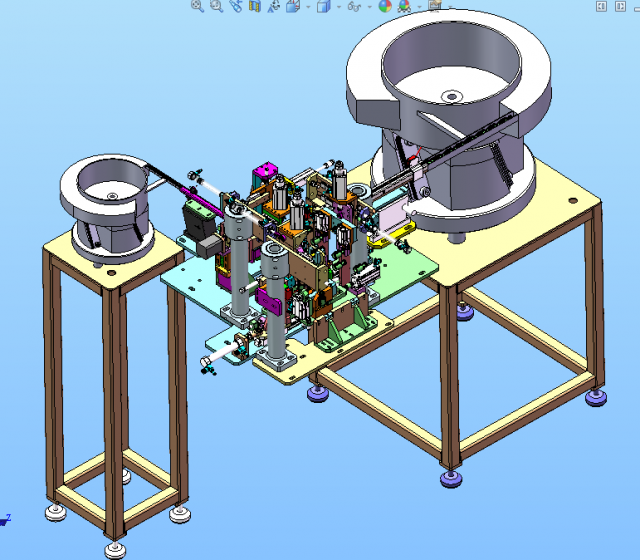

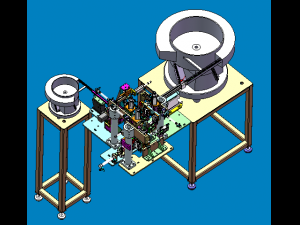

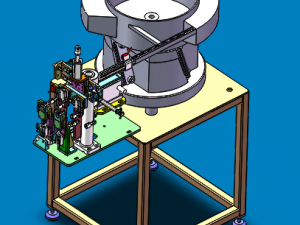

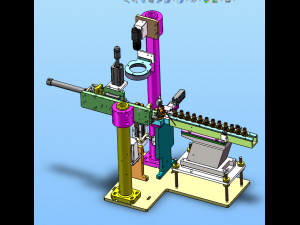

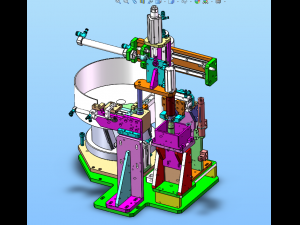

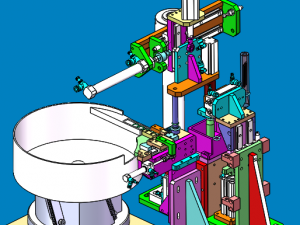

most of the mechanical drawings of the vibrating plate feeding, direct vibration feeding cylinder and material distribution are assembly 3d models, and the parts contain the complete design process, and the design parameters can be directly edited. it includes: l-shaped iron plate vibrating plate arch material distribution mechanism, m3 nut vibration plate feeding direct vibration and material distribution mechanism diagram, gear and bearing double vibration plate feeding sub mechanism diagram, spring plate material distribution vibration plate feeding, gasket vibration plate direct vibration feeder material distribution structure drawing, square nut vibration plate direct vibration material feeding sub structure diagram, square plastic parts feeding vibration plate assembly, grounding terminal vibration plate feeding and distribution composition, vibration plate feeding structure of top cover of lead cap, vibration plate feeding of lower cover of lead cap, vibration plate feeding of small plastic round parts, vibration plate feeding and distribution structure of hardware parts, loading and distribution structure of oil nozzle vibration plate, bearing vibration plate and conveyor belt distribution structure Готовність до друку: Ні
